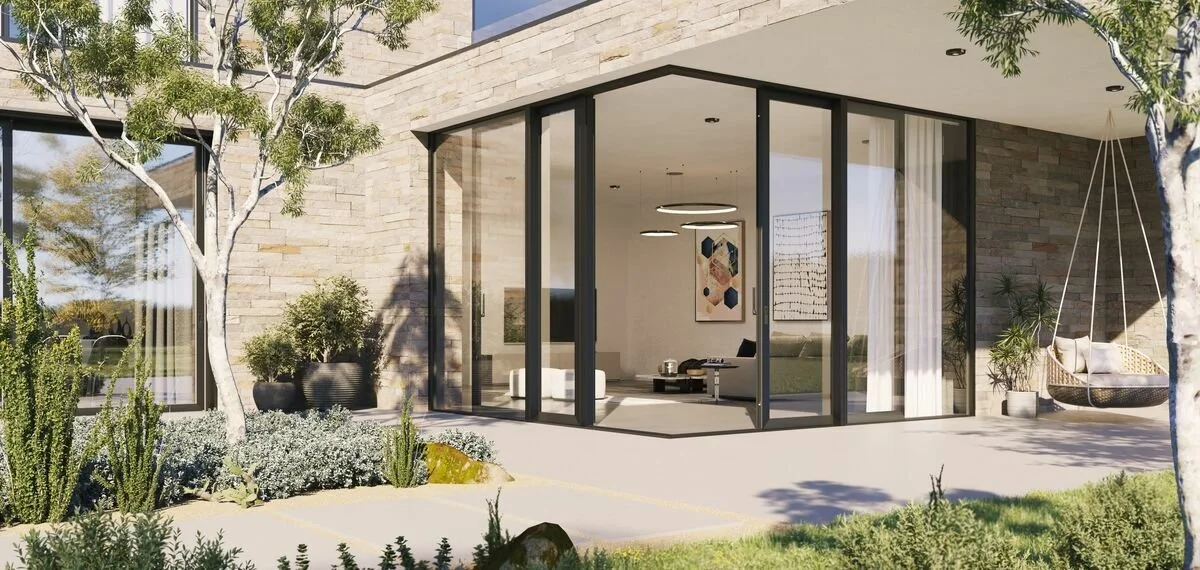

The CP 130 system is available in various opening variants, and the model with a low threshold is a solution that improves access to buildings. The innovative solution allows you to open large spaces of the façade without the need to use fixed elements in the corners of the structure.

Thanks to this, the CP 130 system is an ideal solution for rooms focused on beautiful views. This solid system enables the construction of large and stable sliding doors with a maximum leaf weight of 300 kg. Not without significance is the beautiful-looking, slim center section. In addition, the CP 130 system is an anti-burglary solution in the RC 2 class.

Technical parameters

• Thermal insulation Uf From 1.6 W/m 2 K depending on combination and glazing

• Air permeability Up to 600 Pa (class 4)

• Wind load resistance Up to 2000 Pa (class B5)

• Waterproof Up to 750 Pa (E750 class)

• Burglar resistance Up to RC 2 (EN 1627) + PAS 24
